Lecture 1
Intro & Number Systems
MCS 260 Fall 2020
Emily Dumas

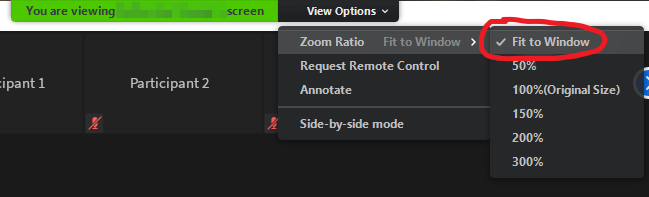

Zoom 101
Scale the slides to your zoom window

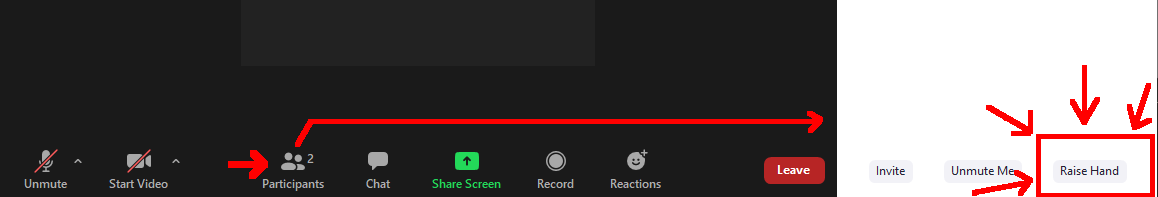

Zoom 102
You can raise your hand to request attention
MCS 260: Intro to Computer Science
- Instructor: Prof. Emily Dumas ⟨edumas@uic.edu⟩
- TA: Jennifer Vaccaro ⟨jvacca4@uic.edu⟩
- TA: David (Hai) Wang ⟨hwang202@uic.edu⟩
Immediate action items
- Read the syllabus
(Yes, the entire thing. Yes, it is boring.) - Check the blackboard course site regularly.
Python
Python is a computer programming language.
Learning Python (version 3.6 or higher) is a key focus of MCS 260.
Most of our discussion of general computer science concepts will be based on the way they are seen and used in Python.
Python versions
In this course we only use Python 3.
The transition from Python 2 to Python 3 was a major milestone, with incompatible changes.
Python 2 support ended in January 1, 2020.
Live demo time
Number systems
Humans usually use the decimal number system, also known as base $10$.
In this system there is a $10^0=1$s place, a $10^1=10$s place, a $10^2=100$s place, etc.
There are $10$ digits with values $0, 1, \ldots, 9$.
In decimal, $312$ means: \[ {\color{red}3 \color{green} 1 \color{orange} 2} = {\color{red} 3} \times 10^2 + {\color{green} 1} \times 10^1 + {\color{orange} 2} \times 10^0 \]
For any whole number $b>1$ there is a number system called base $b$ where the place values are $b^0$, $b^1$, $b^2$, etc.
In base $b$ there are $b$ digits with values $0, 1, \ldots, b-1$.
In mathematics, it is common to use a subscript to indicate the base.
So $201_5$ means the base $5$ number with digits $2,0,1$.
In computer science, three non-decimal number systems are often encountered.
- Binary, or base $2$.
- Hexadecimal, or base $16$.
- Octal, or base $8$. (Least common.)
Binary
The digits are $0$ and $1$. A binary digit is called a bit.
The place values are $1$, $2$, $4$, $8$, $16$, etc.
Example: $1001_2$ means \[ 1\times 8 + 0 \times 4 + 0 \times 2 + 1 \times 1 = 9\]
In Python, binary numbers are indicated by preceding the digits with $\texttt{0b}$.
So the previous example would be written $\texttt{0b1001}$.
We can convert to binary using integer division and remainder.
Integer division
$x /\!/ 2$ means $x$ divided by $2$, discarding the remainer.
e.g.
$7 /\!/ 2 = 3$, $6 /\!/ 2 = 3$.
Remainder
$x \texttt{%} 2$ means the remainder when $x$ is divded by $2$.
$7 \texttt{%}2 = 1$, $6 \texttt{%} 2 = 0$.
To convert a number to binary, just keep track of the remainders when you repeatedly integer-divide by $2$.
| $x$ | $x /\!/ 2$ | $x \texttt{%} 2$ |
|---|---|---|
| $312$ | $156$ | $\color{#F0F}0$ |
| $156$ | $78$ | $\color{#F0E}0$ |
| $78$ | $39$ | $\color{#F0C}0$ |
| $39$ | $19$ | $\color{#F0A}1$ |
| $19$ | $9$ | $\color{#F08}1$ |
| $9$ | $4$ | $\color{#F06}1$ |
| $4$ | $2$ | $\color{#F04}0$ |
| $2$ | $1$ | $\color{#F02}0$ |
| $1$ | $0$ | $\color{#F00}1$ |
So $312 = \texttt{0b}\color{#F00}{\texttt{1}}\color{#F02}{\texttt{0}}\color{#F04}{\texttt{0}}\color{#F06}{\texttt{1}}\color{#F08}{\texttt{1}}\color{#F0A}{\texttt{1}}\color{#F0C}{\texttt{0}}\color{#F0E}{\texttt{0}}\color{#F0F}{\texttt{0}}$, i.e. $312 = 256 + 32 + 16 + 8$.
Binary is not ideal for human consumption because of its low information density.
e.g. $9754 = \texttt{0b10011000011010}$.
Hexadecimal addresses this, giving a more condensed way of expressing a sequence of bits.
Hexadecimal
Hexadecimal or hex is a condensed representation of binary, with one symbol for each $4$-bit block.
Each $4$-bit block is just a number between $\texttt{0b0000}=0$ and $\texttt{0b1111}=15$. We use hex digits $0\ldots9$,$A \ldots F$:
| Digit | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|---|
| Value | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Bit block | 0000 | 0001 | 0010 | 0011 | 0100 | 0101 | 0110 | 0111 |
| Digit | 8 | 9 | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|
| Value | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| Bit block | 1000 | 1001 | 1010 | 1011 | 1100 | 1101 | 1110 | 1111 |
Hexadecimal
Hexadecimal or hex is a condensed representation of binary, with one symbol for each $4$-bit block.
Each $4$-bit block is just a number between $\texttt{0b0000}=0$ and $\texttt{0b1111}=15$. We use hex digits $0\ldots9$,$A \ldots F$:
| Digit | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|---|
| Value | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Bit block | 0000 | 0001 | 0010 | 0011 | 0100 | 0101 | 0110 | 0111 |
| Digit | 8 | 9 | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|
| Value | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| Bit block | 1000 | 1001 | 1010 | 1011 | 1100 | 1101 | 1110 | 1111 |
In Python notation, hexadecimal numbers begin with $\texttt{0x}$, followed by the digits.
So $\texttt{0x3e}$ means
| 3 | e | ||
| 0011 | 1110 | $\longrightarrow$ | $\texttt{0b00111110} = 62$ |
Hexadecimal is also base $16$. Another way to see $\texttt{0x3e}$: \[ \begin{align}\texttt{0x3e} &= \texttt{3} \times 16^1 + \texttt{e} \times 16^0 \\ &= 3 \times 16 + 14 \times 1 = 62 \end{align} \]
Aside: In decimal we sometimes separate groups of digits with punctuation for easier reading.
e.g. in the USA one million is often written "$1,\!000,\!000$".
In Python notation the underscore "$\texttt{_}$" can be used as a separator.
\[ \begin{align}\texttt{0b1111_0100_0010_0100_0000} &= \texttt{0xf4240}\\ &= \texttt{1_000_000} \end{align}\]
When converting binary to hex, the number of bits may not be a multiple of $4$ at first. In this case we need to add some zeros on the left:
\[\texttt{0b10101} = \texttt{0b00010101} = \texttt{0b0001_0101} = \texttt{0x15}\]
To convert a decimal number to hex, one way is to convert to binary and group bits.
An alternative is to repeatedly integer-divide by $16$ and use the remainders:
| $x$ | $x /\!/ 16$ | $x \texttt{%} 16$ |
|---|---|---|
| $62$ | $3$ | $\color{#F0F}{14}$ |
| $3$ | $0$ | $\color{#F00}3$ |
Therefore $62 = \texttt{0x}\color{#F00}{\texttt{3}}\color{#F0F}{\texttt{e}}$
Octal
Octal or base $8$ is similar but we divide a binary number into blocks of $3$ bits, to using $0, \ldots, 7$ to represent blocks of $3$ bits.
In Python notation, octal numbers begin with $\texttt{0o}$ followed by the digits.
(That's numeral zero followed by lower case letter o.)
Example: $\texttt{0o775} = \texttt{0b111_111_101} = 509$
Octal is most commonly seen when setting file permissions on unix/Linux, where $9$ bits are naturally divided into $3$ groups of $3$.
e.g.
chmod 600 secrets.datReferences
- The first steps in working with Python are covered in Section 1.2 of Downey.
- Binary and hexadecimal are covered in Section 1.1 of Brookshear & Brylow.
Acknowledgements
- Some of today's lecture was based on teaching materials developed for MCS 260 by Jan Verschelde.
Revision history
- 2020-08-24 Corrected typo in octal example
- 2020-08-23 Initial publication
