Lecture 37: Parsing and scraping HTML

Reminders and announcements:

Project 4 is due 6pm CDT Friday 28 April.

Please install beautifulsoup4 with


            python3 -m pip install beautifulsoup4

I added a demo program that shows how to generate and serve an image in Flask (without writing it to a file).

Getting data from the web

APIs that directly serve machine-readable, typed data are the best way to bring data from an external service into your programs.

Extracting data from HTML — a language for making human-readable documents — should be considered a last resort.

Today

We discuss what you can do if:

There is no API, but there is HTML containing the data you need, or
The structure of an HTML document is the data.

Simple HTML processing

Level 0: Treat HTML as a string. Do string things.

Level 1: Treat HTML as a stream of tags, attributes, and text. Have a HTML parser recognize them and tell you what it finds. html.parser is good for this.

These approaches handle huge documents efficiently, but make nontrivial data extraction quite complex.

HTML document as an object

Level 2: Use a higher-level HTML data extraction framework like Beautiful Soup, Scrapy, or Selenium.

These frameworks create a data structure that represents the entire document, supporting various kinds of searching, traversal, and extraction.

Note that the whole document needs to fit in memory.

DOM

The Document Object Model or DOM is a language-independent model for representing a HTML document as a tree of nodes.

Each node represents part of the document, such as a tag, an attribute, or text appearing inside a tag.

The formal specification has rules for for naming, accessing, and modifying parts of a document. JavaScript fully implements this specification.

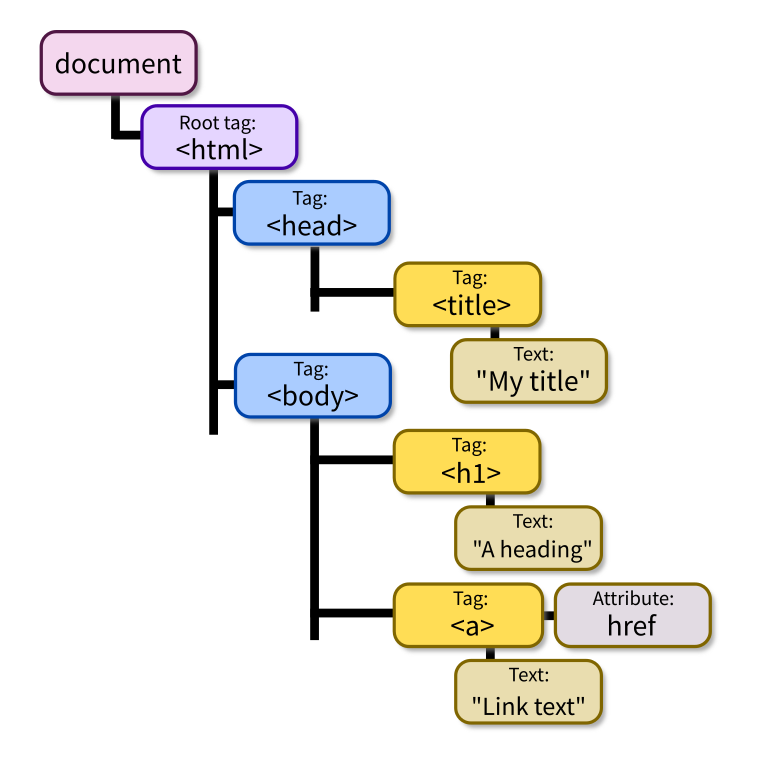

<html><head><title>My title</title></head><body><h1>A heading</h1>
<a href="https://example.com">Link text</a></body></html>

Adapted from DOM illustration by Birger Eriksson (CC-BY-SA).

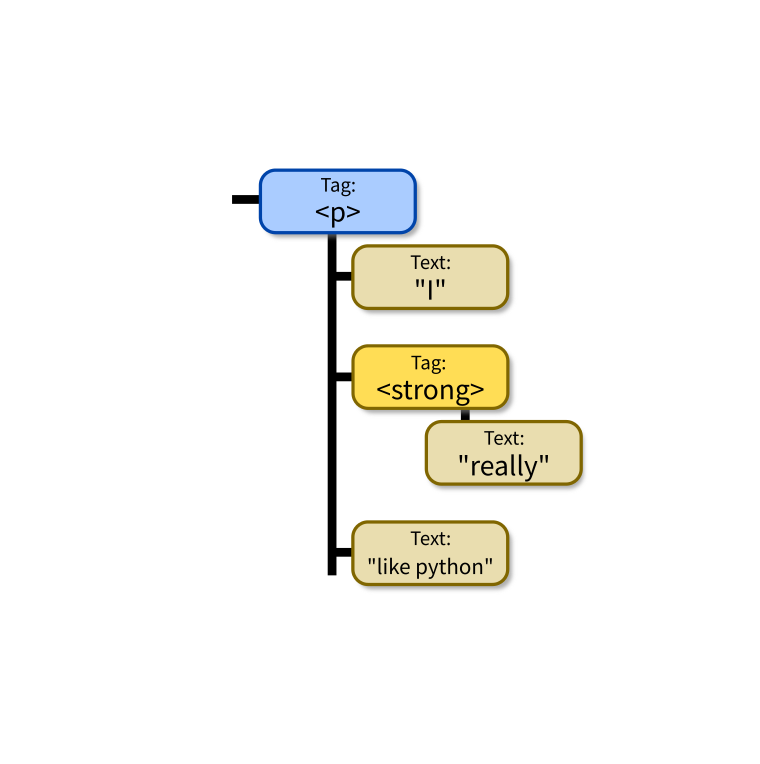

<p>I <strong>really</strong>like Python.</p>

Beautiful Soup

This package provides a module called bs4 for turning HTML into a DOM-like data structure.

Widely used, e.g. at one point Reddit's backend software used it to select a representative image from a web page when a URL appeared in a post^*.

Requires an HTML parser. We'll use html.parser from the standard library, but beautiful soup supports others.

* As of 2014. Perhaps they still use it?

Minimal soup

Parse HTML file into DOM:


        from bs4 import BeautifulSoup

        with open("lecture37.html") as fobj:
            soup = BeautifulSoup(fobj,"html.parser")

Minimal soup

Parse web page into DOM:


        from urllib.request import urlopen
        from bs4 import BeautifulSoup

        with urlopen("https://example.com/") as response:
            soup = BeautifulSoup(response,"html.parser")

Be careful about the ethics of connecting to web servers from programs.

Scraping and spiders

A program that extracts data from HTML is a scraper

A program that visits all pages on a site is a spider.

All forms of automated access should:

Allow the site to prioritize human users.
Limit frequency of requests.
Respect a site's Terms of Service (TOS).
Respect the site's robots.txt automated access exclusion file, if they have one.

Minimal soup

Parse string into DOM:


        from bs4 import BeautifulSoup

        soup = BeautifulSoup(
            "The coffee was strong.",
            "html.parser"
        )

BS4 basics


        str(soup) # show as HTML
        soup.prettify() # prettier HTML
        soup.title # first (and only) title tag
        soup.p  # first p tag
        soup.find("p") # first p tag (alternative)
        soup.p.strong  # first strong tag within the first p tag
        soup.find_all("a") # list of all a tags

Working with tags


        str(tag) # HTML for this tag and everything inside it
        tag.name # name of the tag, e.g. "a" or "ul"
        tag.attrs # dict of tag's attributes
        tag["href"] # get a single attribute
        tag.text # All the text nodes inside tag, concatenated
        tag.string # If tag has only text inside it, returns that text
                   # But if it has other tags as well, returns None
        tag.parent # enclosing tag
        tag.contents # list of the children of this tag
        tag.children # iterable of children of this tag
        tag.banana # first descendant banana tag (sub actual tag name!)
        tag.find(...) # first descendant meeting criteria
        tag.find_all(...) # descendants meeting criteria
        tag.find_next_sibling(...) # next sibling tag meeting criteria

Searching

Arguments supported by all the find* methods:


        tag.find_all(True) # all descendants
        tag.find_all("tagname") # descendants by tag name
        tag.find_all(href="https://example.com/") # by attribute
        tag.find_all(class_="post") # by class
        tag.find_all(re.compile("^fig")) # tag name regex match
        tag.find_all("a",limit=15) # first 15 a tags
        tag.find_all("a",recursive=False) # all a *children*

Also work with find(), find_next_sibling(), ...

Simulating CSS

soup.select(SELECTOR) returns a list of tags that match a CSS selector, e.g.


        soup.select(".wide") # all tags of class "wide"

        # ul tags within divs of class messagebox
        soup.select("div.messagebox ul")

There are many CSS selectors and functions we haven't discussed, so this gives a powerful alternative search syntax.


        # all third elements of unordered lists
        soup.select("ul > li:nth-of-type(3)")

References

urllib documentation
The Beautiful Soup documentation is beautifully clear.

Revision history

2022-04-20 Last year's lecture on this topic finalized
2023-04-19 Updated for 2023
